Temperature Management Controllers

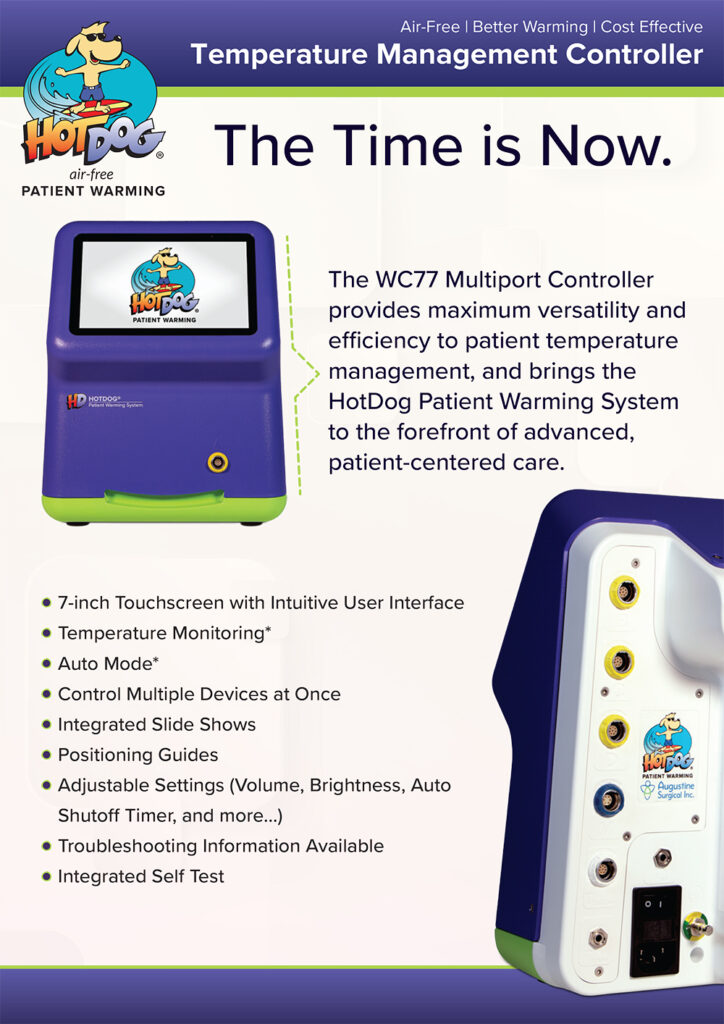

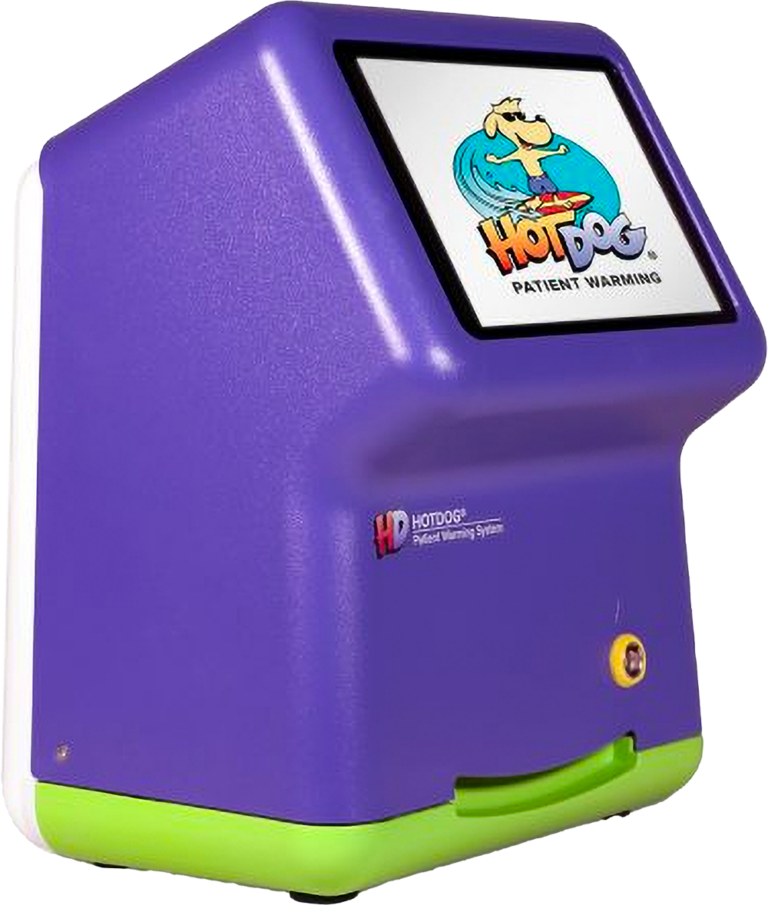

WC77
Temperature Management Controller Multiport
- 7″ Touchscreen Display
- Controls up to four Warming Blankets and one Warming Mattress
- Temperature Monitoring
- Integrated Slide Shows
- Positioning Guides
- IV Pole Clamp
- VESA Mount Compatible
- Integrated Self Testing
WC71
Temperature Management Controller Single Port
- 7″ Touchscreen Display
- Controls one Warming Mattress
- Temperature Monitoring
- Integrated Slide Shows
- Positioning Guides
- IV Pole Clamp
- VESA Mount Compatible
- Integrated Self Testing
| Dimensions | 11” high x 7” deep x 8.75” wide (28 cm H x 17.8 cm D x 22.2 cm W) |
|---|---|
| Weight | 6.4 – 8.3 lbs (2.9 – 3.75 kg) excluding clamp |
| Mounting | Can be placed on a horizontal flat surface (i.e. table top), clamped to an IV pole, or hung using a VESA mount of either FDMI MIS-C (35 × 75 mm) or FDMI MIS-D (75 × 75 mm) specifications |
| Temperature Control | Micro-processor |
| Blanket Operating Temperatures | Blanket Ports A adjustable in 1oC increments 37° to 43° ± 1.0°C (98.6° to 109.4° ± 1.8°F) |
| Mattress Operating Temperature | Mattress Port M adjustable in 1oC increments 35° to 40° ± 1.0°C (95° to 104° ± 1.8°F) |
| Device Ratings | Input: 100-240 VAC, 50/60 Hz, 850VA Output A, B, C, D: 48 VDC, 480 VA Max each Output M: 336 VA Max |
| Leakage Current | Meets UL 60601-1 and IEC 60601-1 requirements for Class I, Type BF equipment. |
| Power Consumption | 850W maximum (during warm-up with all ports occupied) |
| Certifications | IEC 60601-1; EN 60601-1-2; UL 60601-1; CAN/CSA-C22.2, No. 601.1, EN 55011 |
Additional Specifications available in the WC7X Spec Sheet (M134)
Patient Warming Blankets
HotDog can help maintain normothermia for patients of all ages.
B500
Universal Warming Blanket
Dimensions
17.0 in x 30.0 in (43.2 cm x 76.2 cm)Weight
1.8 lb.
(0.8 kg)B103
Lower Body Warming Blanket
Dimensions
29.5 in x 38.75 in
(74.9 cm x 98.4 cm)
Weight
1.8 lb.
(1.36 kg)B104
Full Body Warming Blanket
Dimensions
29.25 in x 50.63 in
(74.3 cm x 128.6 cm)Weight
4.0 lb.
(1.8 kg)B107
Head Warming Wrap
Dimensions
7.75 in x 27.75 in
(19.7 cm x 70.5 cm)
Weight
1.2 lb.
(0.54 kg)Patient Warming Mattresses
HotDog patient warming mattresses are designed to provide safe warming under the patient (35-40°C settings). The fabric heater is layered over pressure-relief foam, providing a uniformly heated, pressure-neutral pad between the patient and the table surface. The outer shell is a non-porous urethane embedded with an anti-microbial agent that prevents the growth of micro-organisms—designed for easy cleaning. The mattresses have a 2-year warranty and expiry.
Mattresses are mostly radiolucent. Only the bus bars along the long edge, the sensor, and connecting wires are radio-opaque.
HotDog can help maintain normothermia for patients of all ages.
U101 Underbody Warming Mattress, 82 cm (32 in)
Heated Dimensions
19.5 in x 32.3 in
(49.5 cm x 82.0 cm)Weight
2.0 lb.
(0.9 kg)U102 Underbody Warming Mattress, 127 cm (50 in)
Heated Dimensions
19.5 in x 50.0 in
(49.5 cm x 127.0 cm)
Weight
3.3 lb.
(1.5 kg)
U300 Trendelenburg Position Warming Mattress, 89 cm (35 in)
Heated Dimensions
23.0 in x 35.0 in
(58.4 cm x 89.0 cm)Overall Dimensions
23.0 in x 39.0 in
(58.4 cm x 99.7 cm)Weight
2.3 lb.

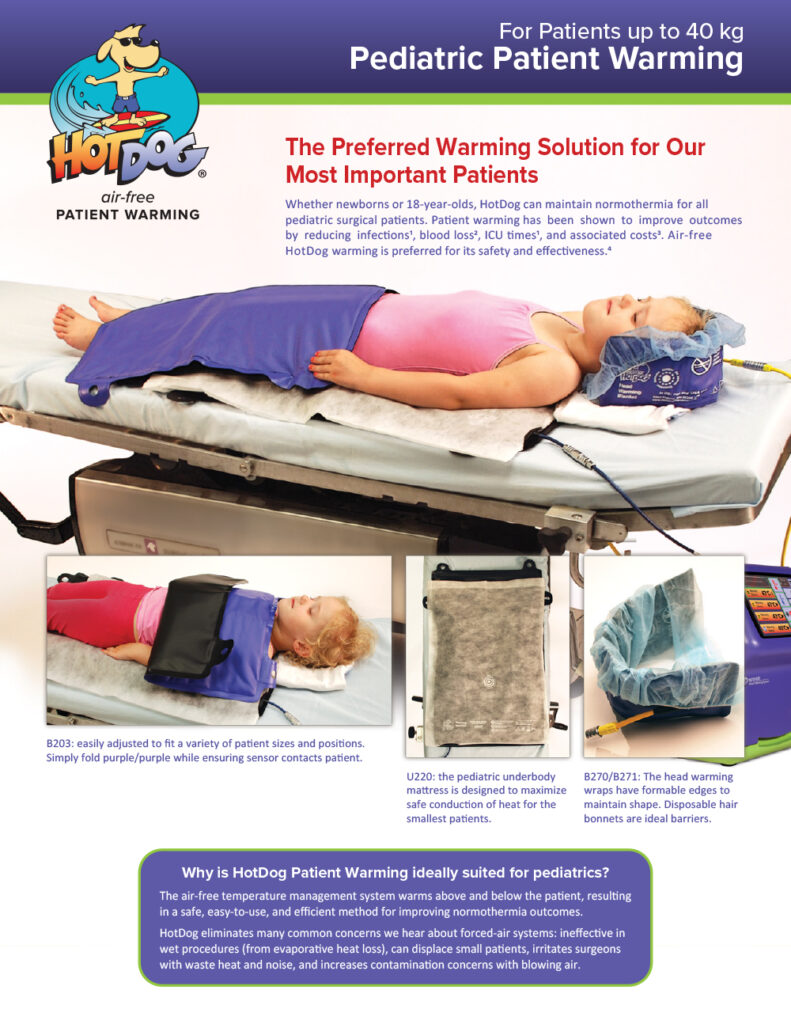

(1.0 kg)Paediatric Patient Warming
HotDog’s air-free paediatric patient warming offerings can help maintain normothermia for patients of all ages. Safe, uniform warming and no waste heat. The semi-conductive fabric produces uniform heat output over the entire surface of the blanket. Temperature is controlled from 37-43°C. The blankets have a 2-year warranty and expiry.
HotDog can help maintain normothermia for patients of all ages.
B203
Paediatric Lower Body Warming Blanket
For patients >8 kg and =< 40 kg
Dimensions
18.0 in x 22.0 in
(45.7 cm x 55.9 cm)Weight
1.0 lb.
(0.5 kg)U220
Paediatric Underbody Warming Mattress
For patients =< 20 kg
Dimensions
17.5 in x 29.0 in
(44.5 cm x 73.7 cm)Weight
2.2 lb.
(1.0 kg)B270
Small Paediatric Head Warming Wrap
Dimensions
4.5 in x 13.0 in
(11.4 cm x 33.0 cm)Weight
0.2 lb.
(0.1 kg)B271
Large Paediatric Head Warming Wrap
Dimensions
5.3 in x 15.3 in
(13.3 cm x 38.7 cm)Weight
0.4 lb.
(0.2 kg)

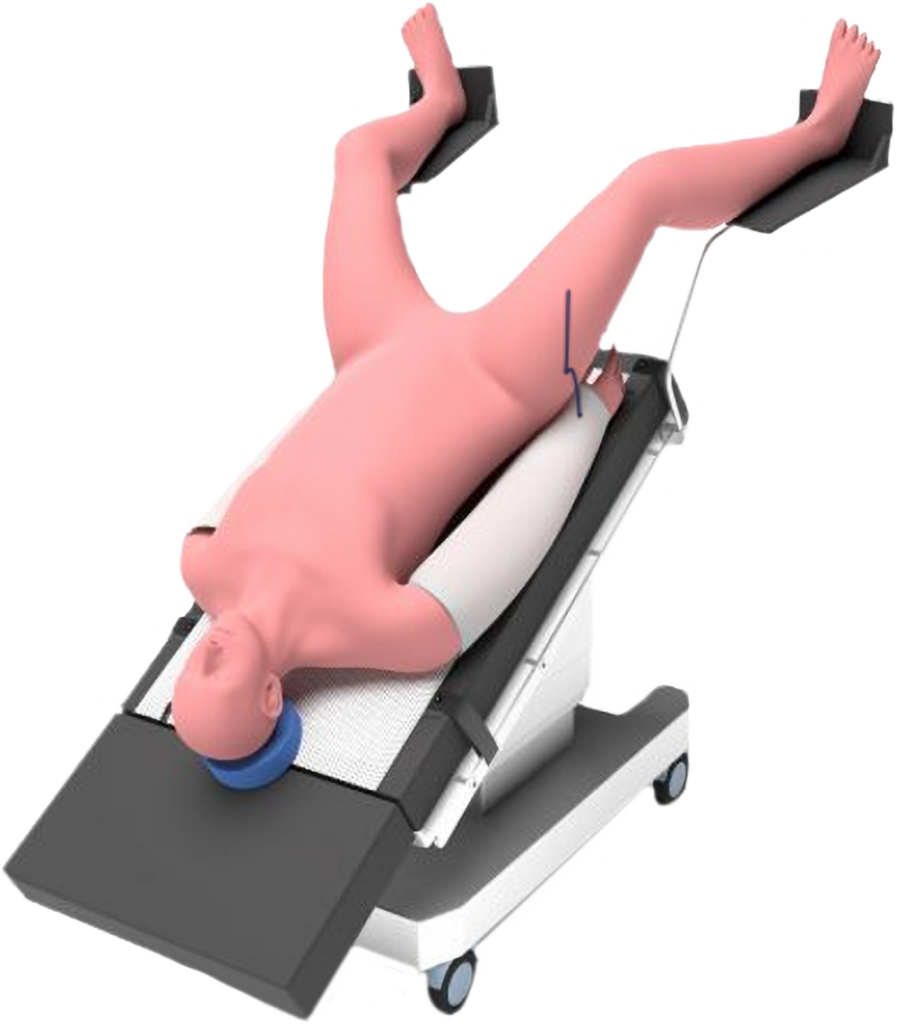

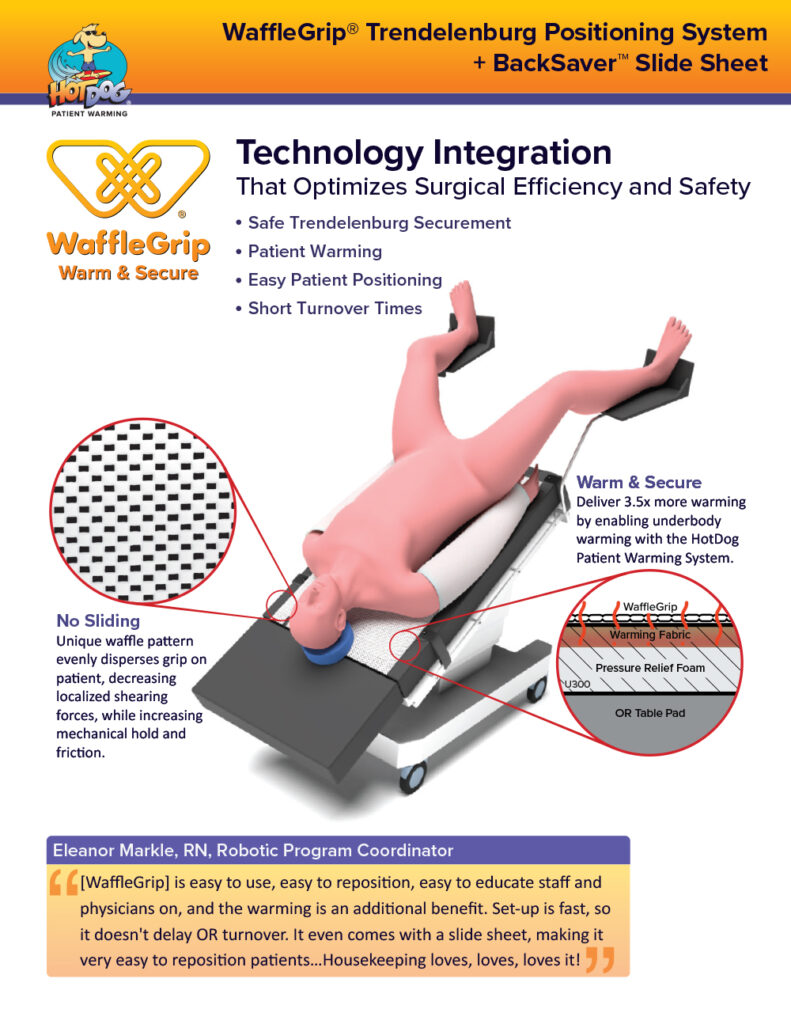

WaffleGrip® Trendelenburg Positioner
Technology Integration That Optimizes Surgical Efficiency and Safety for Trendelenburg Position
Combines Warming with Securement for Optimal Patient Outcomes.
WaffleGrip Trendelenburg Securement System
WaffleGrip + Underbody Mattress
Reduce Hypothermic Patients in Trendelenburg Position.
BackSaver Slide Sheet
Save Your Back When Moving Heavy Patients in Trendelenburg Position
Why Use WaffleGrip for Trendelenburg Securement?
Better Warming
Improve Securement
Efficient & Convenient
Cost
Savings
WaffleGrip Trendelenburg Positioning System + BackSaver Slide Sheet

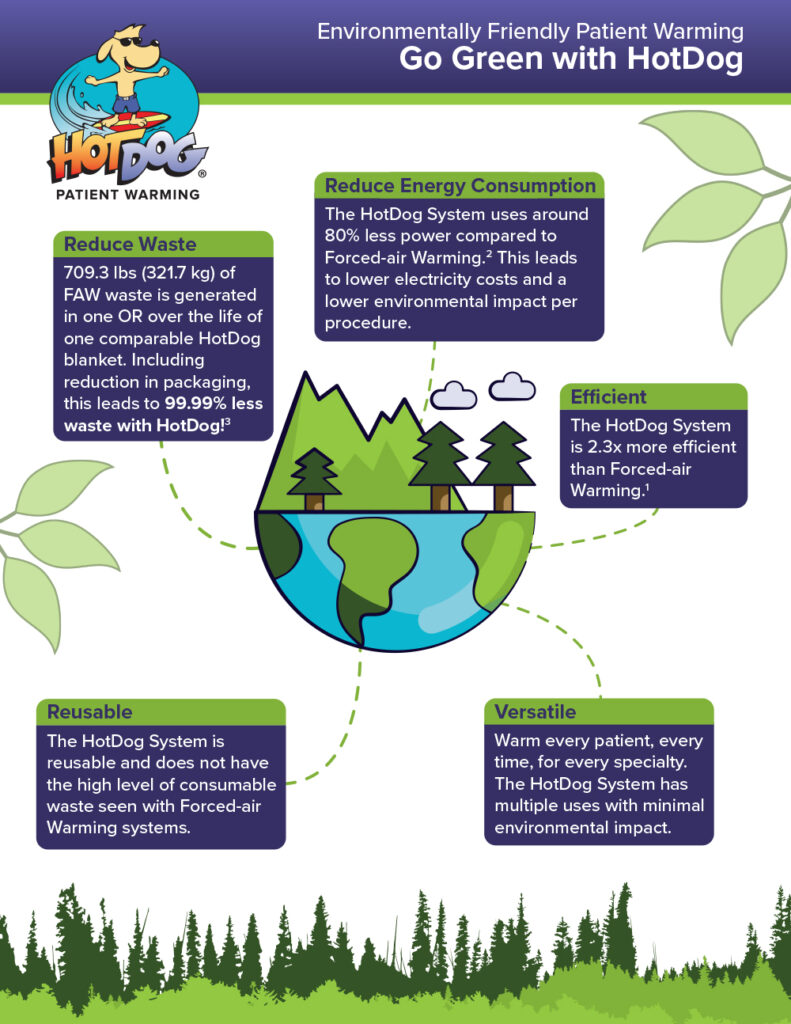

Patient Warming UK – Sustainability Policy
